ProductsSingle-point LiDAR

TF02-Pro-W

TF02-Pro-WBulk-Material Level Detection LiDAR

  • Compact Design
  • Low Power Consumption
  • Self-cleaning

Key specifications

Measuring range
0.1 ~ 25 m
Frame rate
1 ~ 1000 Hz
Interface
UART、I²C
Protection
IP5X

Need help confirming a selection or purchase details?

Applications

Level Detection

Level Detection

TF02-Pro-W measures distance to the material surface at a chosen position. The system can convert it to local level using vessel geometry. Compare surface shape, internal obstructions, window deposits and cleaning; one level point does not directly represent full pile volume.

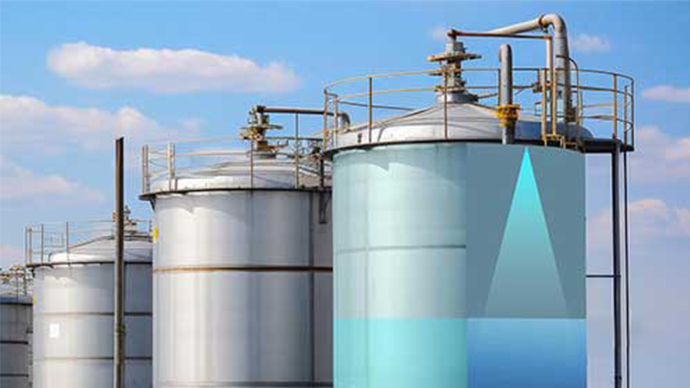

Liquid level measurement

Liquid level measurement

Liquid-level projects must be selected by the actual liquid surface, reflections, foam, vapor and vessel geometry. TF02-Pro-W is developed for dusty material-level tasks with window cleaning; it should not be treated as a universal liquid-level sensor. Compare suitable optical or other level-measurement approaches for the real medium.

Full specifications

Product technical specifications
ParameterValueParameterValue
Measuring range0.1 ~ 25 mDetecting accuracy± 6 cm @ (0.1 ~ 6 m) ± 1% @ (6 ~ 25 m)
Frame rate1 ~ 1000 HzInterfaceUART、I²C
ProtectionIP5XDimensions85 mm × 59 mm × 43 mm
Power consumption≤ 2 WWeight90 ~ 92 g
Field of view3°Output dataSingle-point Distance Value
Operating voltageDC 7 ~ 30 V

Applicable scope and usage limits

Applicable scenarios

  • Evaluate TF02-Pro-W when a bin or silo must track material height at one position and window dust buildup makes manual cleaning difficult.
  • The integrated cleaning brush is a key reason to choose it over a conventional single-point module.

Conditions

  • Validate returns with the actual material, dust-generating process and internal structures.
  • Window cleaning does not establish penetration through all airborne dust.
  • IP5X does not specify a water-protection rating.

Not applicable scenarios

  • In a clean installation without a cleaning requirement, compare conventional single-point models to reduce weight and power.
  • For full pile shape or volume, compare multi-point or scanning systems.
  • Persistent dust in the optical path, vapor or unusual media also warrant comparison with other level-measurement technologies.

Short/mid-range sensing: payload, enclosure and cleaning

Filter by real working distance first, then assess host protection, industrial interfaces and window deposits. More range, an enclosure and automatic cleaning address different needs rather than one performance ranking.

View comparison topic
TFS20-L

Critical payload limits with host-provided protection

The approximately 1.35 g TFS20-L suits directional ranging on very small platforms where weight and space dominate.

Boundary: The module has no enclosure. Provide host protection and verify working distance on actual targets and in strong light.

View model details
TFmini Plus

Short real distances with compact IP65 protection

Compare TFmini Plus when the task is short-range, about 12 g is acceptable and UART/I²C/I/O fits the controller.

Boundary: Its inclusion here does not make it a 40 m or 50 m candidate. Dusty level-sensing tasks also require window-maintenance comparison.

View model details
TF02-Pro

More distance without an automatic-cleaning requirement

Compare TF02-Pro for more directional range than short-range modules, board interfaces and an IP65 enclosure.

Boundary: For native CAN/RS-485, compare industrial-interface models. For recurring window deposits, compare a self-cleaning model.

View model details
TF02-Pro-WCurrent model

One material-level point with recurring window deposits

For bins and silos, the selection reason is an integrated cleaning brush and suitable industrial integration to reduce manual window cleaning.

Boundary: Without a cleaning need, weigh the added mass and power. One height is not pile volume, and IP5X does not specify water protection.

View model details
Key parameter comparison
ParameterTFS20-LTFmini PlusTF02-ProTF02-Pro-W
Measuring range0.2 ~ 20 m0.1 ~ 12 m0.1 ~ 40 m0.1 ~ 25 m
Detecting accuracy± 6 cm (0.2 ~ 6 m), 1% (≥ 6 m)± 5 cm @ (0.1 ~ 5 m)± 1% @ (5 ~ 12 m)± 5 cm @ (0.1 ~5 m) ± 1% @(5 ~ 40 m)± 6 cm @ (0.1 ~ 6 m) ± 1% @ (6 ~ 25 m)
Frame rate0 / 20 / 50 / 100 / 250 Hz1 ~ 1000 Hz1 ~ 1000 Hz1 ~ 1000 Hz
InterfaceUART,I²CUART,I/O,I²CUART,I/O,I²CUART、I²C
Protectionwithout enclosureIP65IP65IP5X
Dimensions21 mm × 15 mm × 7.87 mm35 mm × 18.5 mm × 21 mm69 mm × 41.5 mm × 26 mm85 mm × 59 mm × 43 mm
Power consumption≤ 0.43 W550 mW≤ 1 W≤ 2 W
Weight~ 1.35 g12 ± 1 g50 g90 ~ 92 g
Field of view< 2°3.6°3°3°
Operating voltageDC 3.3 ± 9% V5 ± 0.5 V5 ~ 12 VDC 7 ~ 30 V

FAQ

What is the maximum measurement range of the TF02-Pro-W?

The TF02-Pro-W achieves a maximum range of 25 m at 90% reflectivity (indoors at 0 Klux or outdoors at 100 Klux), and 12 m at 10% reflectivity with low-reflective targets. At 1 cm distance resolution and ±1% accuracy beyond 6 m, it is suitable for level detection and industrial ranging applications requiring extended reach.

What communication interfaces does the TF02-Pro-W support?

The TF02-Pro-W uses RS-485 serial communication with a default baud rate of 115,200 bps, 8 data bits, 1 stop bit, and no parity. The 1.2 m cable is included, and the RS-485 interface is specifically designed for industrial scenarios and multi-node setups requiring longer cable runs and noise immunity.

Which tasks suit TF02-Pro-W, and why choose it?

Evaluate TF02-Pro-W when a bin or silo must track material height at one position and window dust buildup makes manual cleaning difficult. The integrated cleaning brush is a key reason to choose it over a conventional single-point module.

What are the accuracy and precision specifications of the TF02-Pro-W?

The sensor delivers ±6 cm accuracy at 0.1–6 m range and ±1% accuracy at 6–25 m range (both measured with 90% reflectivity targets at 25°C). Repeatability is <2 cm (1σ) across the entire 0.1–25 m range, providing consistent measurements for industrial automation and control applications.

What is the operating temperature range and environmental rating?

TF02-Pro-W specifies -20°C to +60°C operation and -30°C to +80°C storage. IP5X describes dust protection; X does not specify a water-protection rating. The brush addresses window deposits. Check outdoor rain, washdown, medium compatibility and continuous airborne dust separately for the installation.

What power supply and current draw does the TF02-Pro-W require?

The sensor accepts DC 7–30 V input voltage with a 7:1 voltage tolerance designed for industrial power distribution. Average current consumption is ≤200 mA at 12 V, peak current is 400 mA at 12 V, and average power consumption is ≤2 W, making it compatible with standard industrial power supplies and allowing integration into existing systems.

What are the physical dimensions and weight of the TF02-Pro-W?

The TF02-Pro-W measures 85 mm (L) × 59 mm (H) × 43 mm (W) with a compact housing made of PC/ABS material, weighing 92 g including the 1.2 m cable. The compact form factor simplifies mounting on level sensors, pipeline systems, and confined industrial installations.

When should an alternative to TF02-Pro-W be considered?

In a clean installation without a cleaning requirement, compare conventional single-point models to reduce weight and power. For full pile shape or volume, compare multi-point or scanning systems. Persistent dust in the optical path, vapor or unusual media also warrant comparison with other level-measurement technologies. Validate returns with the actual material, dust-generating process and internal structures. Window cleaning does not establish penetration through all airborne dust. IP5X does not specify a water-protection rating.

How should TF02-Pro-W be compared with other models or sensing approaches?

Compare the need for self-cleaning, whether one level point is sufficient, controller interfaces and maintenance. TF02-Pro-W is not a universal upgrade to TF02-Pro, and the W name is not a reason to default to it for water-surface or underwater measurement.

What platforms and systems integrate with the TF02-Pro-W?

The TF02-Pro-W integrates directly with industrial controllers (PLC, industrial PC) via RS-485, supporting MODBUS RTU and vendor-specific protocols. It is compatible with industrial IoT gateways, SCADA systems, and automation frameworks requiring RS-485 slaves, though it does not natively support Arduino, ROS, or Pixhawk without third-party RS-485-to-serial/USB converters.
