TF02-Pro-W-485 Datasheet
TF02-Pro-W-485 Datasheet, including the parameters, figures and instructions in the original document.
TF02-Pro-W-485 LiDAR PD-TF02-Pro-W-485-Datasheet-A01

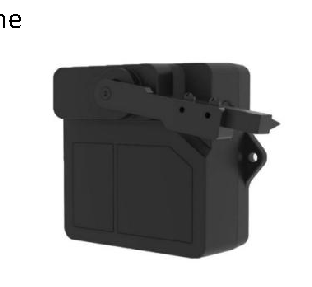

TF02-Pro-W-485 LiDAR
TF02-Pro-W-485 is a single-point ranging LiDAR based on the upgraded TF02-Pro-W using ToF (Time of Flight) principle. It has been optimized in communication interface,
input voltage and reverse voltage protection,adaptedtot needs of industrial scenarios.
Main application
Main product features
scenarios
• High range • Self-cleaning function • Level Detection • 7-30V wide range input voltage • RS-485 communication interface
SPECIFICATIONS
| Parameters | Typical Value | ||
|---|---|---|---|
| Product Performance |
Operating Range | Indoor 0Klux | Outdoor 100Klux |
| 0.1m~25m @90% reflectivity 1 0.1m~12m@10% reflectivity 2 |
0.1m~25m @90% reflectivity 0.1m~12m@10% reflectivity |
||
| Accuracy3 | ±6cm @（0.1m~6m）； ±1% @（6m~25m） | ||
| Distance resolution | 1cm | ||
| Frame rate | 1Hz~1000Hz（adjustable, default100Hz）4 | ||
| Repeatability | 1σ: ＜2cm（0.1m~25m@90% reflectivity） | ||
| Ambient light immunity |
100Klux | ||
| Enclosure rating | IP5X | ||
| Optical parameters |
Photobiological safety | Class 1 （IEC60825） | |
| Central wavelength | 850nm | ||
| Light source | VCSEL | ||
TF02-Pro-W-485 LiDAR PD-TF02-Pro-W-485-Datasheet-A01
| Parameters | Typical Value | ||
|---|---|---|---|
| FoV | 3°5 | ||
| Electrical parameters |
Supply voltage | DC 7V~30V | |
| Average current | ≤200mA@12V | ||
| Power consumption | ≤4.8W | ||
| Peak current | 400mA@12V | ||
| Others | Dimension (L×H×W) | 85mm×59mm×43mm | |
| Housing | PC/ABS | ||
| Operating temperature |
-20℃~60℃ | ||
| Storage temperature | -30℃~80℃ | ||
| Weight | 92g (with cables) | ||
| Cable length | 120cm | ||
| Communicatio n interface |
RS-485 | ||
| Default baud rate | 115200 | ||
| Data bit | 8 | ||
| Stop bit | 1 | ||
| Parity | None | ||

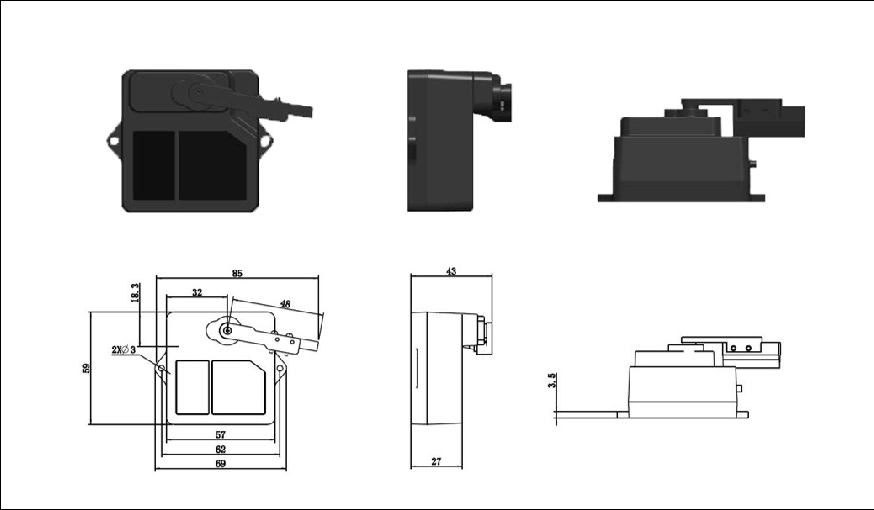

| Dimensions |  |
||
1. The detection range is determined with the standard white board (90% reflectivity) at 25℃.
2. The detection range is determined with the standard black board (10% reflectivity) at 25℃.
3. The accuracy is measured with the standard white board (90% reflectivity) at 25℃.
4. The highest frame rate is 1000Hz, the customized frame rate should be calculated by the formula:
TF02-Pro-W-485 LiDAR PD-TF02-Pro-W-485-Datasheet-A01
2000/n (n is an integer with ≥ 2).
5. The angle is a theoretical value, the actual angle value has some deviation.
Disclaimer ： As our products are constantly improving and updating, the specifications of TF02-Pro-W are subjected to change. Please refer to the official website for the latest version.
