TF02-i Datasheet

TF02-i LiDAR PD-TF02-i-Datasheet-A03

TF02-i LiDAR

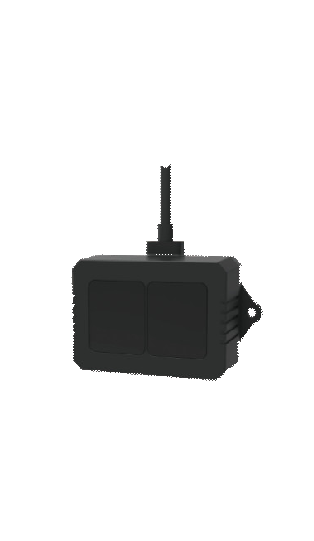

TF02-i is an updated single-point ranging LiDAR based on TF02-Pro. It has been optimized in communication interface and input voltage, making it satisfy different industrial applications. The product is based on the ToF (Time of Flight) principle and provides stable, accurate and reliable ranging performance.
Main Features	Typical Applications
• Wide range input voltage • CAN/RS-485 interface	• Robot • Intelligent traffic • Intelligent device • UAV

SPECIFICATIONS

Parameters		Typical Value
Product performance	Operating Range	Indoor 0Klux	Outdoor 100Klux
		0.1m~40m @90% reflectivity1 0.1m~13.5m@10% reflectivity2	0.1m~40m @90% reflectivity 0.1m~13.5m@10% reflectivity
	Accuracy3	±5cm @（0.1m~5m）； ±1% @（5m~25m）
	Distance resolution	1cm
	Frame rate4	1Hz~100Hz（adjustable, default 100Hz）
	Frame rate	1...1000Hz adjustable (default 100Hz)
Optical parameters	Photobiological safety	Class 1 （IEC60825）
	Central wavelength	850nm
	Light source	VCSEL
	FoV5	3°
Electrical parameters	Supply voltage	DC 7V~30V
	Average current	≤70mA @12V
	Power consumption	≤0.85W @12V

TF02-i LiDAR PD-TF02-i-Datasheet-A03

Parameters			Typical Value
	Peak current		100mA
Others	Dimension (L×H×W)		69mm×40.5mm×31.5mm
	Housing		ABS/PC/PMMA
	Operating temperature		-20℃~60℃
	Storage temperature		-30℃~80℃
	Weight		60g (with cables)
	Cable length		70cm
Communicatio n Interface	RS-485			CAN
	Interface parameters	Default value		Interface parameters	Default value
	Baud rate	115200		Baud rate	250kbps
	Data bit	8		Receiving ID	0x00000003
	Stop bit	1		Transmitting ID	0x00000003
	Parity	None		Frame Format	Standard frame

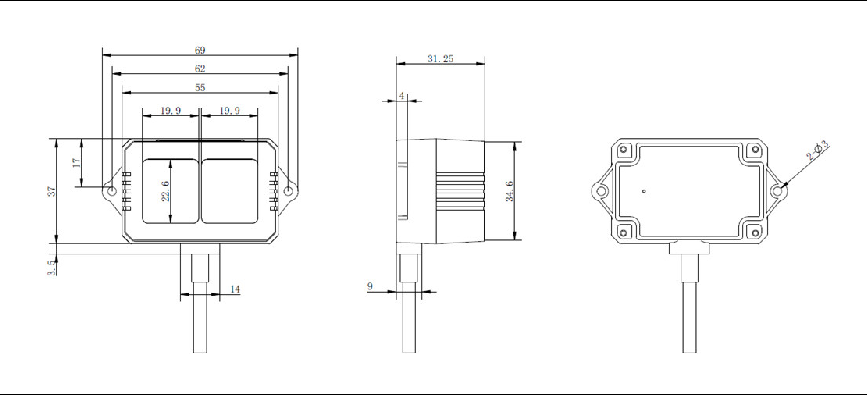

Dimensions

1.The detection range is determined with the standard white board (90% reflectivity) at 25 ℃ , changes in conditions may cause changes in measurement results.

2.The detection range is determined with the standard black board (10% reflectivity) at 25 ℃ , changes in conditions may cause changes in measurement results.

3.The accuracy is measured with the standard white board (90% reflectivity) at 25℃, changes in conditions may cause changes in measurement results.

4.The highest frame rate is 100Hz, the customized frame rate should be calculated by the formula: 200/n (n is an integer with ≥ 2).

5.The angle is a theoretical value, the actual angle value has some deviation.

Disclaimer: As our products are constantly improving and updating, the specifications of TF02-i are subjected to change. Please refer to the official website for the latest version.
