TF-Luna Datasheet

TF-Luna LiDAR module (Short-range distance sensor） PD-TF-Luna-Datasheet-A05

TF-Luna LiDAR

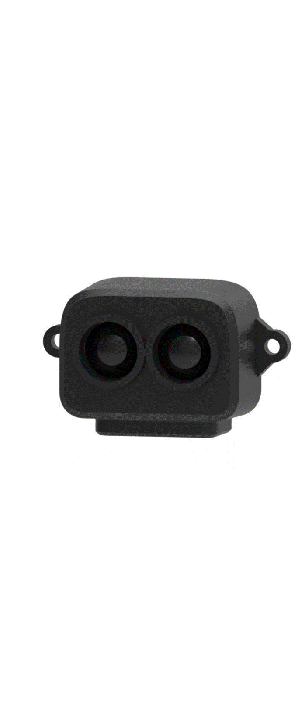

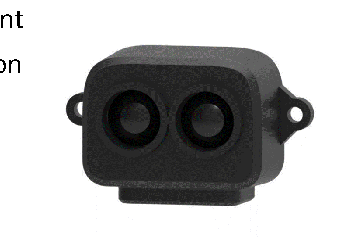

TF-Luna is a single-point ranging LiDAR, based on ToF principle. Mainly used for stable, accuracy and high-frame rate range detection. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
Main Product Features	Main Application Scenarios
• Small size • Light weight • Low power consumption • Low cost	• Auxiliary focus • Elevator projection • Intrusion detection • Level measurement

SPECIFICATIONS

Description		Parameter value

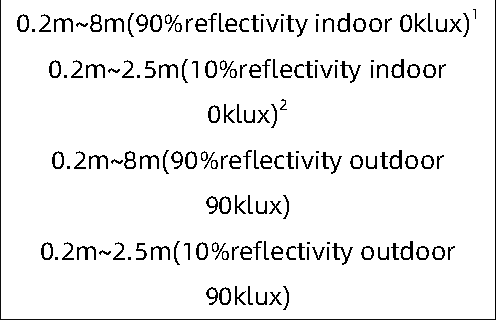

Product performance	Operating range	0.2m~8m(90%reflectivity indoor 0klux)1 0.2m~2.5m(10%reflectivity indoor 0klux)2 0.2m~8m(90%reflectivity outdoor 90klux) 0.2m~2.5m(10%reflectivity outdoor 90klux)
	Accuracy	±6cm@(0.2m-3m)3 ±2%@(3m-8m)
	Distance resolution	1cm
	Frame rate	1-250Hz4
	Ambient light immunity	70Klux
	Operation temperature	-10℃~60℃

TF-Luna LiDAR module (Short-range distance sensor） PD-TF-Luna-Datasheet-A05

	Enclose rating		/
Optical parameters	Light source		VCSEL
	Central wavelength		850nm
	Photobiological safety		Class1 (IEC60825)
	FOV		2°5
Electrical parameters	Supply voltage		3.7V-5.2V
	Average current		≤70mA
	Power consumption		≤0.35W
	Peak current		150mA
	Communication level		LVTTL(3.3V)
	Communication interface		UART, I²C, I/O
Others	Dimension		35mm*21.25mm*12.5mm (L*W*H)
	Housing		ABS+PC
	Storage temperature		-20℃~75℃
	Weight		<5g
Communicati on Interface	UART		I2C
	Default baud rate	115200 （adjustable）	Max transmission rate	400kbps
	Data bit	8	Master/Slave mode	Slave
	Stop bit	1	Default address	0x10
	Parity	None	Address range	0x08~0x77

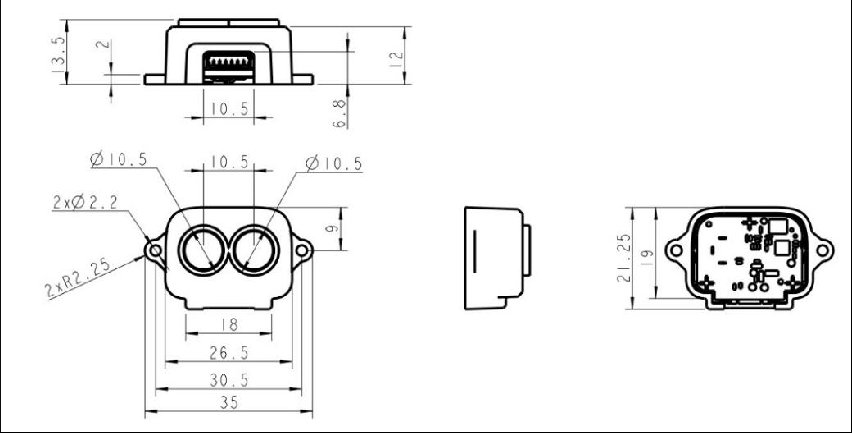

Dimensions

1.Range based on the indoor test with the standard white board (90% reflectivity) at 25℃ as the detection object； 2.Range based on the indoor test with the standard white board (90% reflectivity) at 25℃ as the detection object； 3.Accuracy based on the indoor test with the standard white board (90% reflectivity) at 25℃ as the detection object； 4.The Highest frame rate is 250Hz, the default frame rate is 100Hz. The customized update rate should be

TF-Luna LiDAR module (Short-range distance sensor） PD-TF-Luna-Datasheet-A05 calculated by the formula: 500/n (n is more than 2),； 5.This is a theoretical reference value.
