TF03 Series Datasheet
TF03 Series Datasheet, including the parameters, figures and instructions in the original document.
TF03 is an industrial grade high-speed measurement LiDAR with a range of up to 180m. The TF03 integrates compensation algorithms for outdoor strong light and rain, snow, and fog environments, allowing it to work normally in strong light and rain and fog environments. It also has multiple measurement modes and parameters for customers to choose and configure independently to meet the ranging needs of different customers.
Technical Specifications
| Performance Parameters | ||
|---|---|---|
| Model | TF03-100 | TF03-180 |
| Detection range① | 100 m @ 90% ref. 40 m @ 10% ref. |
180 m @ 90% ref. 70 m @ 10% ref. |
| Blind zone | ≤ 0.1 m | |
| Accuracy① | ± 10 cm (< 10 m), 1% (≥ 10 m) | |
| Repeatability① | < 3 cm @ 1σ | |
| Distance resolution | 1 cm | |
| Default frame rate | Up to 9,800 Hz (1 ~ 9,800 Hz configurable, default 100 Hz) | |
| Ambient light resistance | 100 KLux | |
| Optical Parameters | ||
| Light source | EEL | |
| Central wavelength | 905 nm | |
| FoV② | < 0.5° | |
| Eye safety | Class1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021) | |
| Mechanical and Electrical Parameters | ||
| Average power consumption③ |
≤ 800 mW | |
| Peak current③ | ＜ 480mA @ 12V | |
| Power supply | DC 5V ~ 24V | |
| Logical voltage | 3.3 V TTL | |
| Connector | Molex standard 7pin terminal, model MH1.25-7P-W/B | |
| Operating temperature | - 25 ℃ ~ + 60 ℃ |
|---|---|
| Storage temperature | - 40 ℃ ~ + 85 ℃ |
| Protection level | IP67 |
| Typ. Dimensions② | 44.0 mm x 43.0 mm x 32.0 mm |
| Cable length② | 70 cm |
| Typ. Weight② | 86 ±3g (excluding cables) |
| Communication Protocol | |
| Communication Interface | UART / CAN (Can be switched by command), RS232, RS485 Please note that the above communication interfaces belong to three independent hardware models. Please choose the corresponding product model according to your needs. |

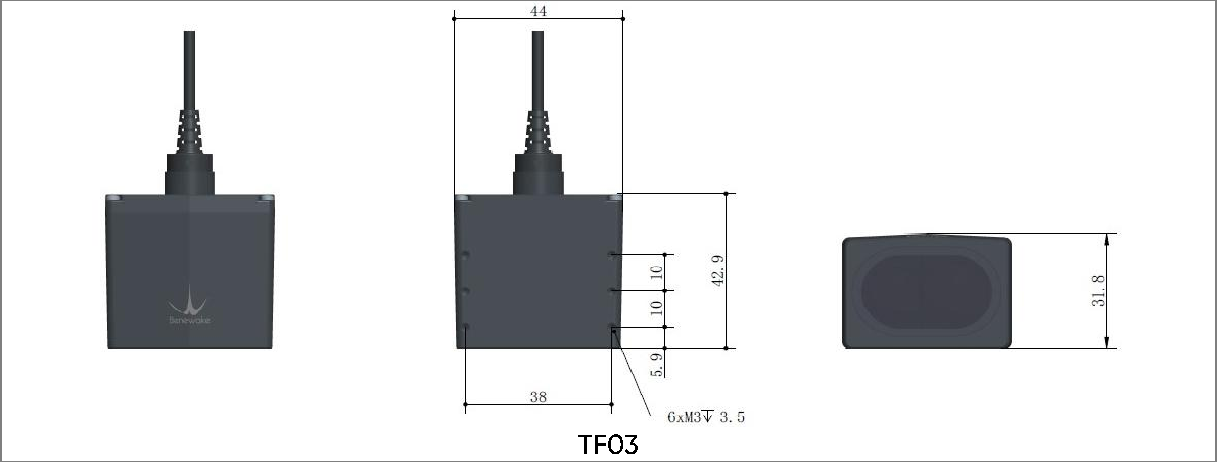

| Dimensions (Unit: mm） | |
TF03 |
|
Notes: 1. When all the light spots fall on the target object, the accuracy, distance resolution, and repeatability are measured under the conditions of a diffuse reflection whiteboard (90% reflectivity) at 25 ℃ indoors; 2. The weight and size are typical values for reference only. For detailed tolerance parameters, please consult the technical personnel of Benewake; 3. Measured at a temperature of 25 ℃, 100 Hz;
