TF-NOVA Datasheet
TF-NOVA Datasheet, including the parameters, figures and instructions in the original document.
TF-NOVA is a small size, line pattern laser beam LiDAR developed by Benewake, which is
particularly suitable for applications such as obstacle detection, presence activation trigger.
Multiple parameters are available for customers to customize and configure to meet various
application requirements.
Technical Specifications
| Measurement Performance | |
|---|---|

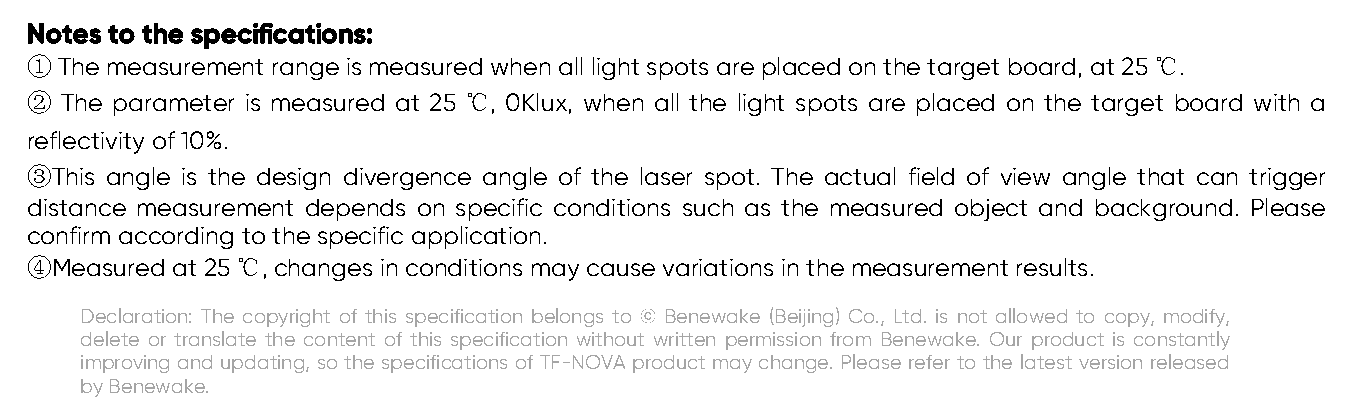

| Detection range① | ≥14m @90%reflectivity, 0Klux ≥13m @10% reflectivity, 0Klux ≥7m @90% reflectivity, 100Klux ≥4m @10% reflectivity, 100Klux |
| Blind zone② | ≤ 0.1m |
| Accuracy② | ± 5cm @ 0.1-4m |
| Repeatability② | < 1cm (1 sigma) @ 0.1-4m |
| Distance resolution | 1cm |
| Default frame rate | Default 100Hz, 1-900Hz customizable |
| Optical Parameters | |
| Light source | VCSEL |
| Central wavelength | 905nm |
| FoV of laser emission③ | Typ. 14°×1° |
| Eye safety | Class 1 Eye-safe[EN60825] |
| Mechanical/Electrical | |
| Average power consumption④ | < 500mW |
| peak current when starting④ | < 850mA |
| Start-up time | < 1s |
| Power supply | DC 5±5%V |
| Operating temperature | -25℃ ~ +70℃ |
| Storage temperature | -30℃ ~ +80℃ |
|---|---|
| Dimensions | TYP. 26.5x 21.05 x 12.0mm³ |
| Weight | <5g |
| Connector | 1.25mm-5P |
| Protection Level | N.A. |
| Front window protection level | IP65 |
| Cable length | 10cm |
| Communication Protocol | |
| Communication Interface | UART, IIC, I/O |
| Baud rate | Default 115200 |
| Data bit | 8 |
| Stop bit | 1 |
| Parity | None |

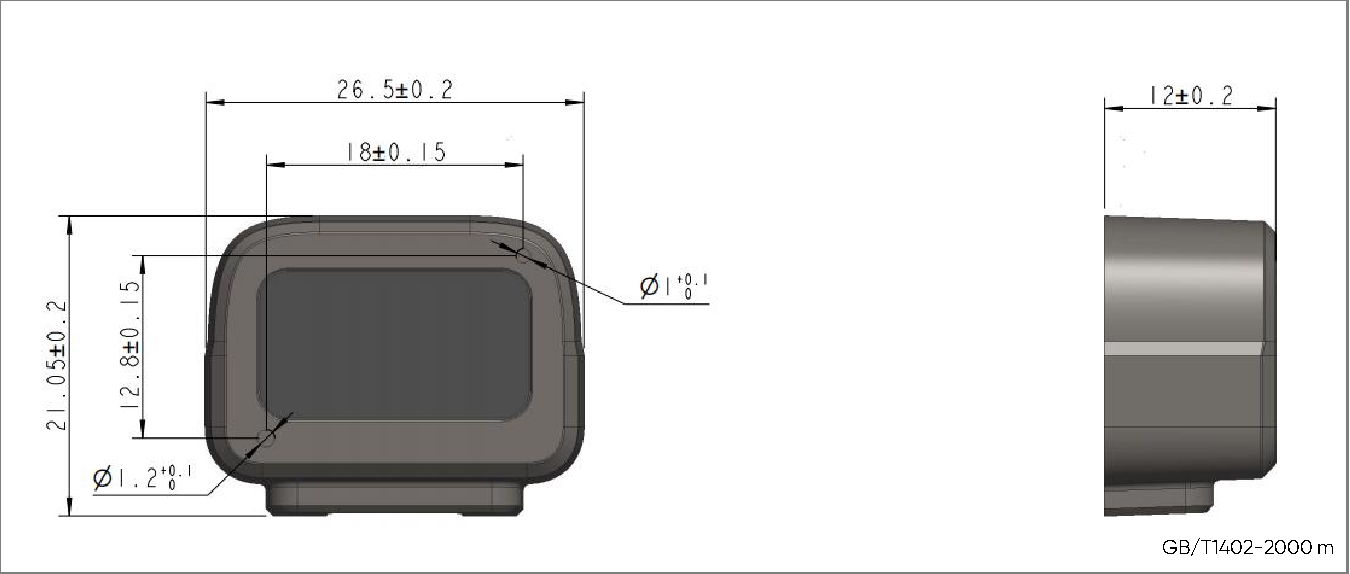

| Dimensions（Unit: mm） | |
GB/T1402-2000 m |
|
