NOVA20 Datasheet V2.1
Official NOVA20 datasheet supplied by Benewake.

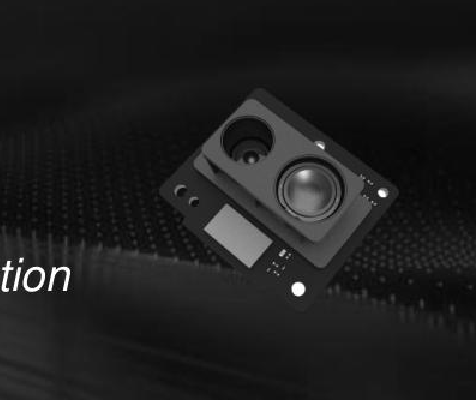

Benewake NOVA 20
TOF Module Product Specification
NOVA 20 is a compact multi-point LiDAR independently developed by Benewake for robot obstacle avoidance and fall prevention, platform screen door foreign object detection, and space presence detection. It offers high accuracy and strong ambient-light resistance for diverse application environments.
Technical Specifications
| Performance Parameters | |
|---|---|
| Measurement Range | 1 m @ 10% reflectivity, 100 klux |
| Blind Zone | ≤ 0.1 m |
| Accuracy | 3 cm @ 0.1-0.3 m; 5 cm @ 0.3-0.5 m |
| Precision | ≤ 3 cm (1σ) |
| Frame Rate | 10 Hz |
| Number of Channels | 20 channels |
| FOV¹ | ≤ 40° (±20°, evenly distributed) |
| Optical Performance | |
| Light Source | VCSEL |
| Central Wavelength | 905 nm |
| Laser Safety Class | Class 1 Eye-safe [EN60825] |
| Mechanical and Electrical Parameters | |
| Avg. Power Consumption⁴ | < 1 W |
| Startup Peak Current | < 850 mA |
| Supply Voltage | DC 5 V ±5% |
| Operating Temperature | -20°C ~ +55°C |
| Storage Temperature | -40°C ~ +85°C |
| Dimensions (D×W×H) | Typical dimension 25 mm × 21 mm × 14 mm |
|---|---|
| Weight | < 5 g |
| Hardware Interface | 1.25 mm-5Pin |
| Protection Rating | / |
| Communication Interface Parameters | |
| Communication Interface | UART |
| Baud Rate | Default 921600 bps |
| Data Information | Distance, signal strength, channel number, temperature |
| Software Runtime Environment | Supports Linux (Ubuntu), ROS, and Windows platform |
Serial Port Output Format
Byte:
| Byte | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|---|
| Description | 0x59 | 0x59 | Dist_L | Dist_H | Peak_L | Peak_H | Temp | Zone index |
Checksum |
Definitions
- Dist: Distance (unit: mm)
- Peak: Signal strength
- Temp: Built-in chip temperature
- Zone index: Channel number

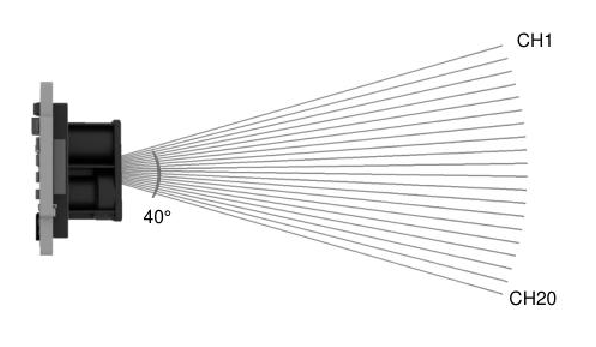

FOV Distribution
Statement: The copyright of this specification belongs to (C) Benewake Co., Ltd. Without official written permission from Benewake, the contents of this specification may not be copied, modified, deleted, or translated. Our products are continuously improved and updated; therefore, product specifications may change. Please refer to the latest version released by Benewake.

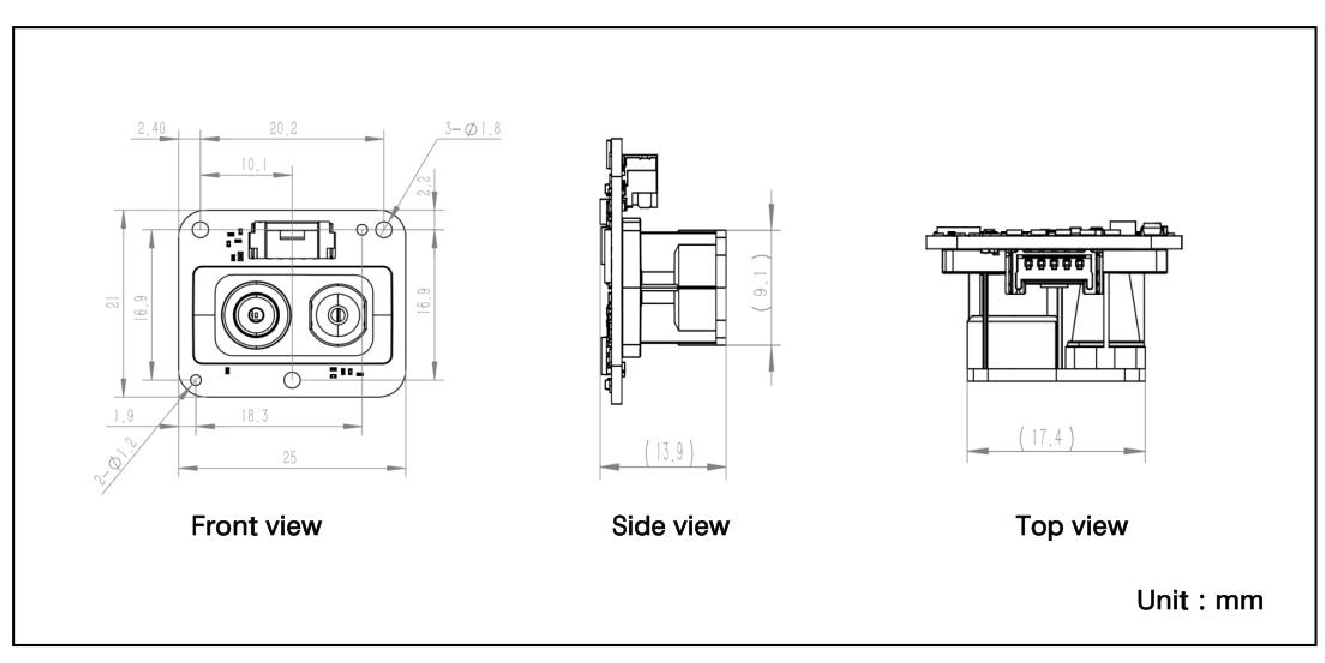

2D drawing
